Think of join mode like this: distinct Semgrep rules are used to gather information about a code base. Then, the conditions you define are used to select specific results from these rules, and the selected results are reported by Semgrep. You can join results on metavariable contents or on the result’s file path.
INFOYou can also use cross-file (interfile) analysis. For more information, see Perform cross-file analysis. is preferred over join mode where either of the two are feasible. Neither is currently available in Semgrep Community Edition (CE).

​
Example

Here’s an example join mode rule that detects a cross-site scripting (XSS) vulnerability with high precision.
rules:
- id: flask-likely-xss
  mode: join
  join:
    refs:
      - rule: flask-user-input.yaml
        as: user-input
      - rule: unescaped-template-extension.yaml
        as: unescaped-extensions
      - rule: any-template-var.yaml
        renames:
        - from: '$...EXPR'
          to: '$VAR'
        as: template-vars
    on:
    - 'user-input.$VAR == unescaped-extensions.$VALUE'
    - 'unescaped-extensions.$VAR == template-vars.$VAR'
    - 'unescaped-extensions.$PATH > template-vars.path'
  message: |
    Detected a XSS vulnerability: '$VAR' is rendered
    unsafely in '$PATH'.
  severity: HIGH
Let’s explore how this works. First, some background on the vulnerability. Second, we’ll walk through the join mode rule. background In Flask, templates are only HTML-escaped if the template file ends with the .html extension. Therefore, detecting these two conditions present in a Flask application is a high indicator of
  1. User input directly enters a template without the .html extension
  2. The user input is directly rendered in the template
Join mode rule explanation Now, let’s turn these conditions into the join mode rule. We need to find three code patterns:
  1. User input
  2. Templates without the .html extension
  3. Variables rendered in a template
We can write individual Semgrep rules for each of these code patterns.
rules:
- id: flask-user-input
  languages: [python]
  severity: LOW
  message: $VAR
  pattern: '$VAR = flask.request.$SOMETHING.get(...)'

rules:
- id: unescaped-template-extension
  message: |
    Flask does not automatically escape Jinja templates unless they have
    .html as an extension. This could lead to XSS attacks.
  patterns:
  - pattern: flask.render_template("$PATH", ..., $VAR=$VALUE, ...)
  - metavariable-pattern:
      metavariable: $PATH
      language: generic
      patterns:
      - pattern-not-regex: .*\.html$
  languages: [python]
  severity: MEDIUM

rules:
- id: any-template-var
  languages: [generic]
  severity: LOW
  message: '$...EXPR'
  pattern: '{{ $...EXPR }}'
Finally, we want to “join” the results from these together. Below are the join conditions, in plain language.
  1. The variable $VAR from flask-user-input has the same content as the value $VALUE from unescaped-template-extension
  2. The keyword argument $VAR from unescaped-template-extension has the same content as $...EXPR from any-template-var
  3. The template file name $PATH from unescaped-template-extension is a substring of the file path of a result from any-template-var
We can translate these roughly into the following condition statements.
- 'user-input.$VAR == unescaped-extensions.$VALUE'
- 'unescaped-extensions.$VAR == template-vars.$VAR'
- 'unescaped-extensions.$PATH > template-vars.path'
Combining the three code pattern Semgrep rules and the three conditions gives us the join rule at the top of this section. This rule matches the code displayed below.

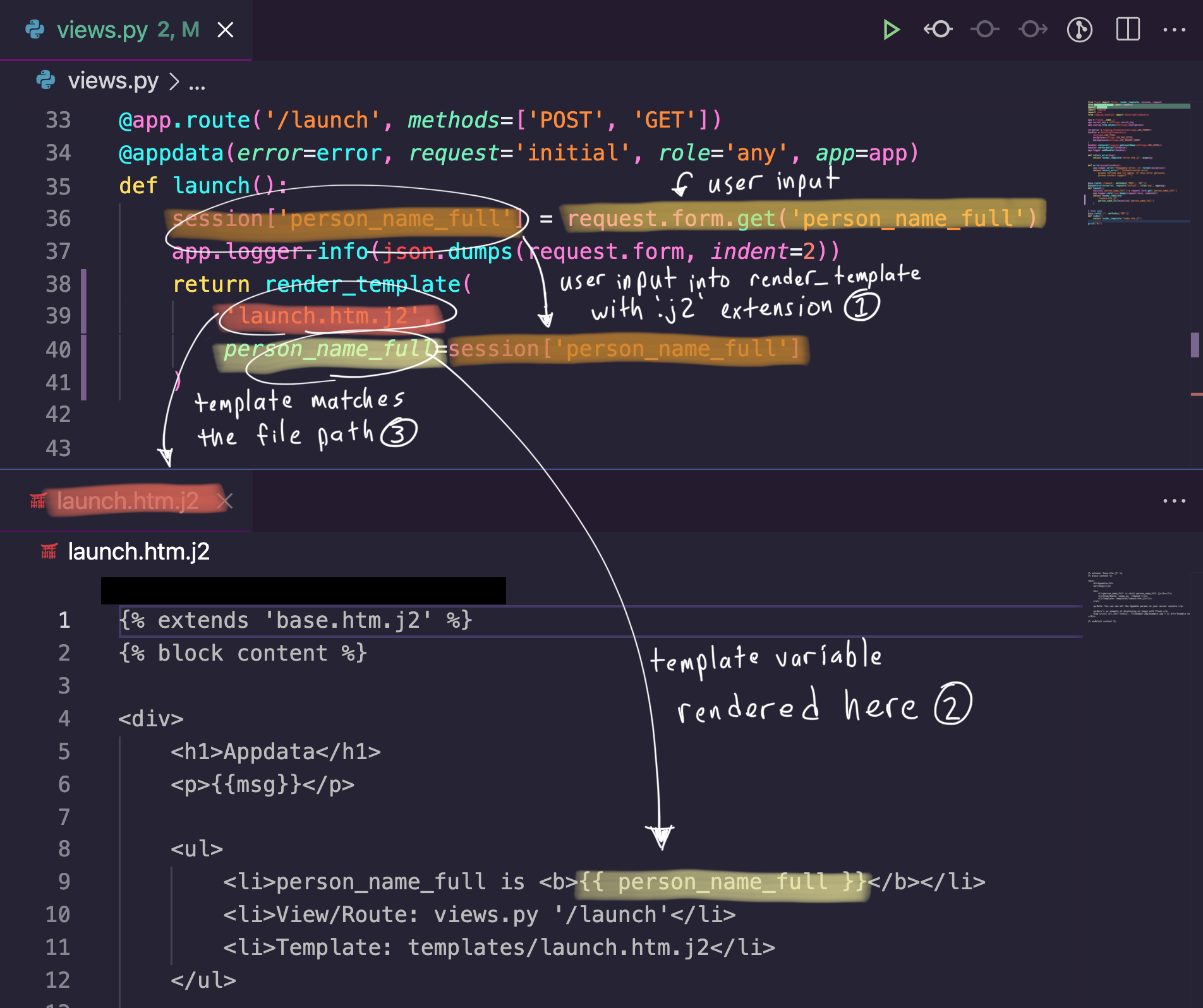

Screenshot of code the join rule matches
> semgrep -f flask-likely-xss.yaml
running 1 rules...
running 3 rules...
ran 3 rules on 16 files: 14 findings
matching...
matching done.
./templates/launch.htm.j2
severity:error rule:flask-likely-xss: Detected a XSS vulnerability: '$VAR' is rendered unsafely in '$PATH'.
9:	<li>person_name_full is <b>{{ person_name_full }}</b></li>
Helpers For convenience, when writing a join mode rule, you can use the renames and as keys. The renames key lets you rename metavariables from one rule to something else in your conditions. This is necessary for named expressions, e.g., $...EXPR. The as key behaves similarly to AS clauses in SQL. This lets you rename the result set for use in the conditions. If the as key is not specified, the result set uses the rule ID.

​
Syntax

​
join

The join key is required when in join mode. This is just a top-level key that groups the join rule parts together.

​
Inline rule example

The following rule attempts to detect cross-site scripting in a Flask application by checking whether a template variable is rendered unsafely through Python code.
rules:
- id: flask-likely-xss
  mode: join
  join:
    rules:
      - id: user-input
        pattern: |
          $VAR = flask.request.$SOMETHING.get(...)
        languages: [python]
      - id: unescaped-extensions
        languages: [python]
        patterns:
        - pattern: |
            flask.render_template("$TEMPLATE", ..., $KWARG=$VAR, ...)
        - metavariable-pattern:
            metavariable: $TEMPLATE
            language: generic
            patterns:
            - pattern-not-regex: .*\.html$
      - id: template-vars
        languages: [generic]
        pattern: |
          {{ $VAR }}
    on:
    - 'user-input.$VAR == unescaped-extensions.$VAR'
    - 'unescaped-extensions.$KWARG == template-vars.$VAR'
    - 'unescaped-extensions.$TEMPLATE < template-vars.path'
  message: |
    Detected a XSS vulnerability: '$VAR' is rendered
    unsafely in '$TEMPLATE'.
  severity: HIGH
The required fields under the rules key are the following:
  • id
  • languages
  • A set of pattern clauses.
The optional fields under the rules key are the following:
  • message
  • severity
NOTERefer to the metavariables captured by the rule in the on conditions by the rule id. For inline rules, aliases do not work.

​
refs

Short for references, refs is a list of external rules that make up your code patterns. Each entry in refs is an object with the required key rule and optional keys renames and as.

​
rule

Used with refs, rule points to an external rule location to use in this join rule. Even though Semgrep rule files can typically contain multiple rules under the rules key, join mode only uses the first rule in the provided file. Anything that works with semgrep --config <here> also works as the value for rule.

​
renames

An optional key for an object in refs, renames renames the metavariables from the associated rule. The value of renames is a list of objects whose keys are from and to. The from key specifies the metavariable to rename, and the to key specifies the new name of the metavariable.
WARNINGRenaming is necessary for named expressions, e.g., $...EXPR.

​
as

An optional key for an object in refs, as lets you specify an alias for the results collected by this rule for use in the on conditions. Without the as key, the default name for the results collected by this rule is the rule ID of the rule in rule. If you use as, the results can be referenced using the alias specified by as.

​
on

The on key is required in join mode. This is where the join conditions are listed. The value of on is a list of strings which have the format:
<result_set>.<property> <operator> <result_set>.<property>
result_set is the name of the result set produced by one of the refs. See the as key for more information. property is either a metavariable, such as $VAR, or the keyword path, which returns the path of the finding. operator is one of the following.
OperatorExampleDescription
==secret-env-var.$VALUE == log-statement.$FORMATVARMatches when the contents of both sides are exactly equal.
!=url-allowlist.$URL != get-request.$URLMatches when the contents of both sides are not equal.
<template-var.path < unsafe-template.$PATHMatches when the right-hand side is a substring of the left-hand side.
>unsafe-template.$PATH > template-var.pathMatches when the left-hand side is a substring of the right-hand side.

​
Limitations

Join mode is not taint mode! While it can look on the surface like join mode is “connecting” things together, it is actually just creating sets for each Semgrep rule and returning all the results that meet the conditions. This means some false positives will occur if unrelated metavariable contents happen to have the same value. To use join mode with refs, you must define your individual Semgrep rules in independent locations. This can be anything that works with semgrep --config <here>, such as a file, a URL, or a Semgrep registry pointer like r/java.lang.security.some.rule.id. Join mode requires login, and does not work in the Semgrep Playground or Semgrep Editor, as it is an experimental feature. Currently, join mode only reports the code location of the last finding that matches the conditions. Join mode parses the conditions from top-to-bottom, left-to-right. This means that findings from the “bottom-right” condition become the reported code location.

​
More ideas

Join mode effectively lets you ask questions of entire code bases. Here are some examples of the kinds of questions you can use join mode to answer.
  • Do any of my dependencies use dangerouslySetInnerHTML, and do I directly import that dependency?
  • Does a key in this JSON file have a dangerous value, and do I load this JSON file and use the key in a dangerous function?
  • Is an unsafe variable rendered in an HTML template?
